README

Filament Tree Table

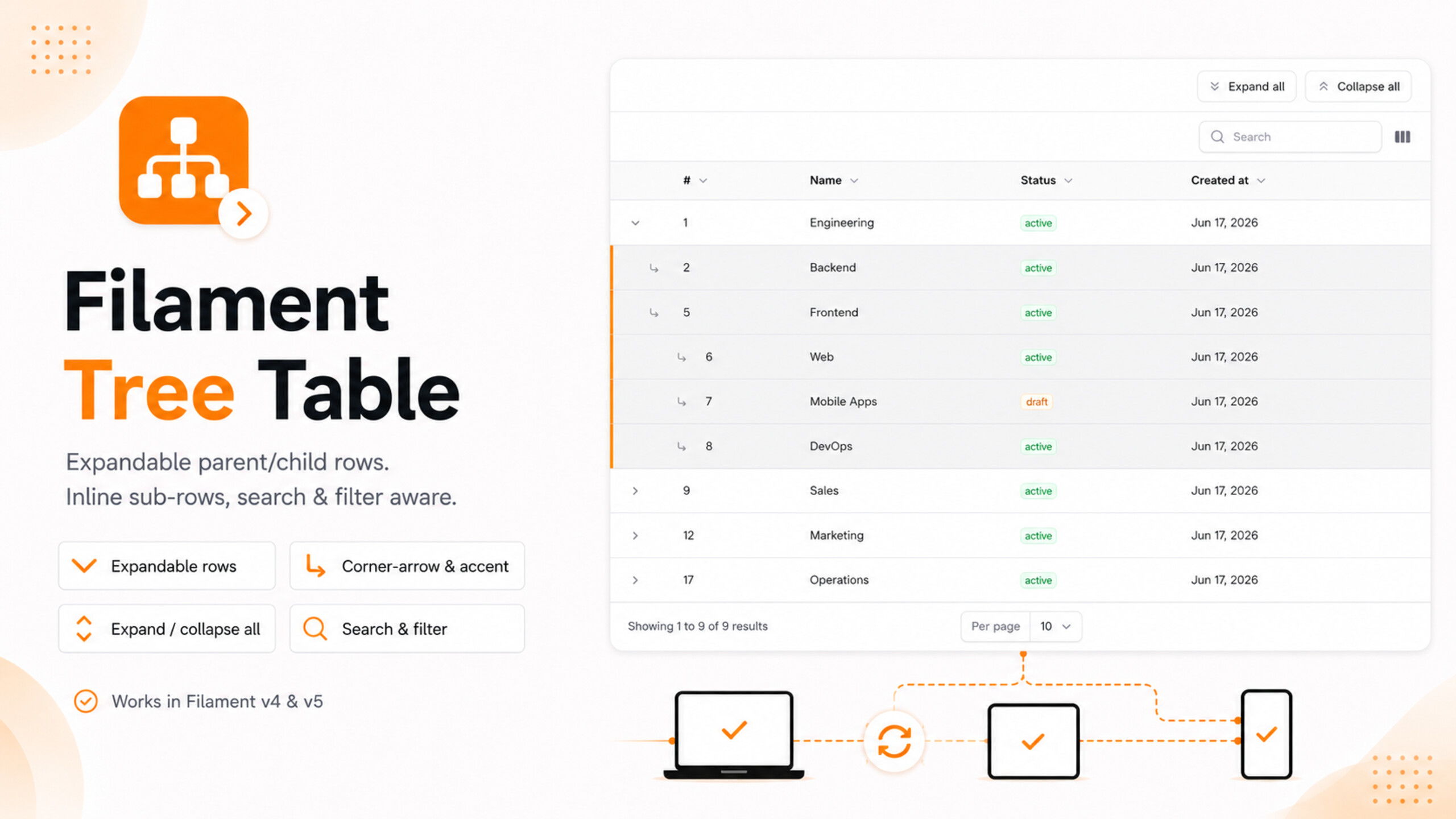

Expandable parent/child tree rows for Filament v4 & v5 tables. Show only top-level parents, expand them with a chevron, and render the sub-rows inline as real table rows — search and filter stay correct, and you get expand-all / collapse-all buttons.

• ✅ Inline expandable rows that keep all your existing columns
• ✅ Search / filter aware — flatten to a flat match list, or keep the tree and reveal each match with its ancestor path (auto-expanded, non-matching ancestors dimmed as context)
• ✅ Custom sibling ordering — defaultSort() plus full ->sortable(query: ...) / relationship-column support inside the tree
• ✅ Clear sub-rows without forcing an icon convention: a corner-arrow glyph on children and/or a coloured accent bar (+ optional per-depth tint) — mix or switch, fully themeable
• ✅ Expand-all / collapse-all header actions
• ✅ Database-agnostic ordering (Postgres / MySQL / SQLite)
• ✅ No stored level/depth column required — depth is derived from parent_id

Requirements

• PHP 8.2+
• Filament v4 or v5

Installation

composer require kisame76/filament-tree-table

The CSS auto-registers with Filament. After install (and on deploy) run:

php artisan filament:assets

Optionally publish the config:

php artisan vendor:publish --tag="filament-tree-table-config"

Usage

Your model needs a self-referencing parent_id column and a children() HasMany relationship (both names are configurable).

It takes two pieces — applying the tree where the table is defined, and opting the page in.

1. Apply the tree in your table definition

In Filament's resource structure the table lives in Tables/<Name>Table::configure() (or directly in the resource's table() method). Wrap it with ExpandableRows:

use Filament\Tables\Table;
use Kisame76\FilamentTreeTable\ExpandableRows;

class CategoriesTable
{
    public static function configure(Table $table): Table
    {
        return ExpandableRows::make()
            ->parentKey('parent_id')           // default
            ->childrenRelationship('children') // default
            ->applyTo(
                $table->columns([
                    // ... your normal columns
                ])
            );
    }
}

applyTo() prepends the chevron toggle column, wires the tree query, applies the per-row styling, and adds the expand/collapse-all header actions.

2. Opt the page in

The List page is the Livewire component that holds the expand state, so add the interface + trait there. It has no table() of its own — that stays in the table class:

use Filament\Resources\Pages\ListRecords;
use Kisame76\FilamentTreeTable\Concerns\InteractsWithExpandableRows;
use Kisame76\FilamentTreeTable\Contracts\HasExpandableRows;

class ListCategories extends ListRecords implements HasExpandableRows
{
    use InteractsWithExpandableRows;

    protected static string $resource = CategoryResource::class;
}

Relation managers and table widgets define table() on the component itself, so there is only one class: add the ExpandableRows::make()->applyTo(...) call and the implements HasExpandableRows + use InteractsWithExpandableRows to that same class.

Configuration

Every cue is an independent toggle — combine or switch freely:

ExpandableRows::make()
    ->parentKey('parent_id')                        // default
    ->childrenRelationship('children')              // default
    ->recordKey(fn ($record) => $record->getKey())  // for non-default primary keys
    ->grid(true)                                    // per-level stepping (indentation) on/off
    ->cornerArrow(true)                             // corner-down-right glyph on children
    ->accentBar(true)                               // coloured bar on the child's left edge
    ->depthTint(true)                               // per-depth background tint (child rows lighter)
    ->recordClasses(fn ($record, int $depth) => []) // extend/override row classes
    ->expandAllAction(true)
    ->collapseAllAction(true)
    ->flattenOnSort(false)                          // false (default): sort hierarchically, keep tree; true: flat sorted list
    ->flattenOnFilter(true)                         // true (default): a filter flattens the tree; false: keep the tree + reveal matches with ancestors
    ->flattenOnSearch(true)                         // true (default): a search flattens the tree; false: keep the tree + reveal matches with ancestors
    ->defaultSort('sort')                           // default sibling order: a column name...
    ->defaultSort(fn ($query, $direction) => $query->orderBy('sort', $direction)) // ...or a closure (order by a related/computed value)
    ->applyTo($table);

Project-wide defaults live in config/filament-tree-table.php.

Theming

All visuals are driven by CSS variables — override them in your panel theme:

.ftt-row {
  --ftt-slot: 1.5rem; /* width of each marker column (indent step) */
  --ftt-accent-color: rgb(99 102 241 / 0.85);
  --ftt-tint-color: rgb(99 102 241);
}

How it works / caveats

• Filtering / search: by default (flattenOnFilter(true) / flattenOnSearch(true)) an active filter or search drops the tree and shows a flat list of every match, so nothing stays hidden behind a collapsed parent. Set either to false to keep the tree — matches are then shown together with their ancestor path (auto-expanded), and the non-matching ancestors are dimmed via the .ftt-context class (style it in your theme). While a filter/search drives the expansion the chevrons are non-interactive and the expand/collapse-all actions hide, so the displayed state can't be toggled out of sync.
• Pagination counts the visible tree rows; page sizes shift as you expand, and a branch can span a page boundary. For very deep trees consider ->paginated(false).
• Sorting: a column sort is delegated to the column itself, so ->sortable(query: ...) closures and relationship/computed columns order the tree exactly as they would a flat table. Use defaultSort() for the sibling order when no column sort is active. With flattenOnSort(false) (default) the sort stays hierarchical — each sibling group follows the column while keeping the tree grouped under its parent (Jira-style); set flattenOnSort(true) to drop the tree and show a flat sorted list.
• Stepping: grid(false) removes the per-level indentation (flat rows); the hierarchy is then shown only by accentBar/depthTint. grid and cornerArrow are independent.
• Column manager: the chevron toggle column is kept out of the column-manager panel (the toggleableColumns() / reorderableColumns() dropdown) and is always pinned as the first column, so a persisted column order can never hide it or push it to the back. It still carries a non-breaking-space label internally (->toggleColumnLabel('…') to change it) because Filament rejects blank labels on reorderable columns — the label is no longer shown anywhere. The pinning is done by InteractsWithExpandableRows, which overrides Filament's getDefaultTableColumnState() / updateTableColumns(). On a List page, relation manager, or table widget this just works (the base class supplies InteractsWithTable). The only exception is a bare custom Livewire component that uses InteractsWithTable and InteractsWithExpandableRows side by side — there, resolve the trait conflict explicitly: use InteractsWithTable, InteractsWithExpandableRows { InteractsWithExpandableRows::getDefaultTableColumnState insteadof InteractsWithTable; InteractsWithExpandableRows::updateTableColumns insteadof InteractsWithTable; }.
• Components that do not implement HasExpandableRows (e.g. a widget sharing the same table() definition) render completely flat — every wired behaviour self-disables.

License

MIT.
